Machine colors, designs, and specifications are subject to change without prior notice. For the latest details, please contact your supplier directly.

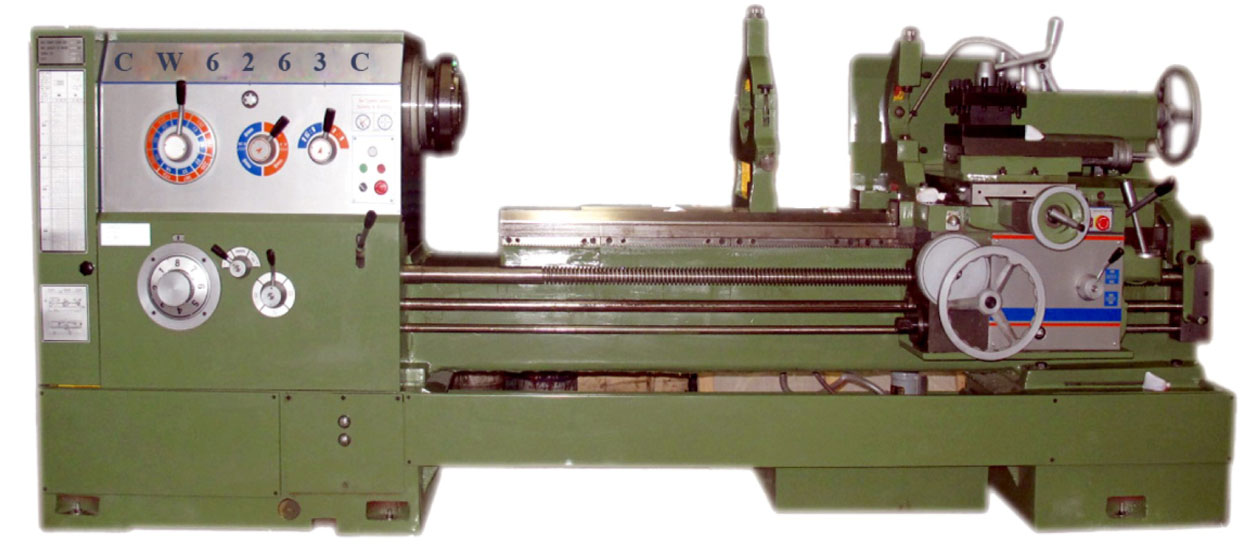

CW6263C

Capacity

Distance between centres	4500 mm
Swing over bed	630 mm
Swing in gap	800 mm
Swing over cross slide	350 mm
Length in gap from face plate	300 mm

Spindle & Drive

Spindle nose	C11 or D11
Spindle bore	105 / 130 mm
Spindle speeds	10 – 800 rpm (18 steps)
Spindle motor	11 kW

Threads & Feeds

Metric threads	1 – 240 mm (53 kinds)
Inch threads	30 – 2 TPI (31 kinds)
Module threads	0.25 – 6.0 mm (46 kinds)
Diametral pitch threads	60 – 0.5 TPI (47 kinds)

Slides & Tailstock

Cross slide travel	480 mm
Top rest travel	225 mm
Rapid travel - Longitudinal Z	3200 mm/min
Rapid travel - Longitudinal X	1900 mm/min
Quill diameter	90 mm
Quill travel	260 mm
Quill taper	MT5

Dimensions & Weight

Bed width	550 mm
Packing size (L × W × H)	6810 × 1400 × 2000 mm
Gross weight	7300 kg
