Machine colors, designs, and specifications are subject to change without prior notice. For the latest details, please contact your supplier directly.

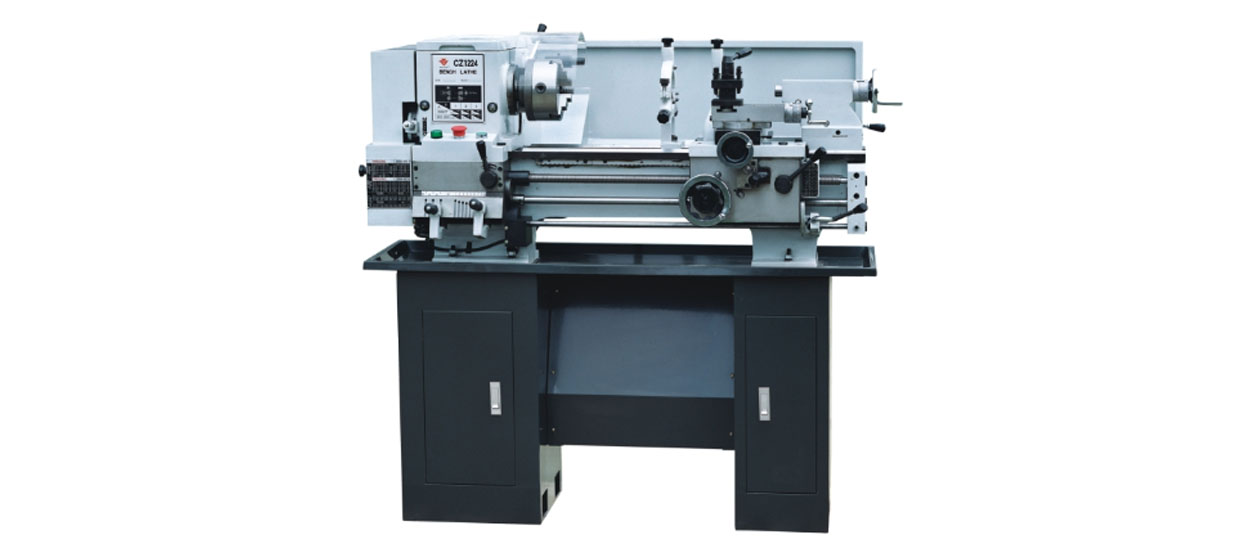

CZ1224

Capacity

Distance between centres	530 mm
Swing over bed	305 mm
Swing over carriage	173 mm
Swing over gap	440 mm
Saddle travel	510 mm
Cross travel	150 mm
Compound travel	90 mm
Barrel travel	100 mm
Barrel diameter	32 mm

Spindle & Drive

Spindle taper	M.T. 5
Spindle bore	36 mm
Spindle speed steps	12
Spindle speed range	50 – 1200 rpm
Motor power	1.1 kW
Coolant system power	0.04 kW

Threads & Feeds

Metric threads	15 kinds (0.25 – 7.5 mm)
Inch threads	40 kinds (4 – 112 T.P.I.)
Feed range	0.12 ~ 0.42 mm/rev (0.0047″ – 0.0165″)
Lead screw diameter	22 mm (7/8″)
Lead screw pitch	3 mm or 8 T.P.I.

Tailstock

Barrel travel	100 mm
Barrel diameter	32 mm
Taper of center	M.T. 3

Dimensions & Weight

Width of bed‑way	182 mm
Machine size (L × W × H)	1420 × 750 × 760 mm
Stand size (L × W × H)	400 × 370 × 700 mm
Main machine weight (N.W/G.W)	365 / 415 Kg
Machine stand weight (N.W/G.W)	60 / 65 Kg
