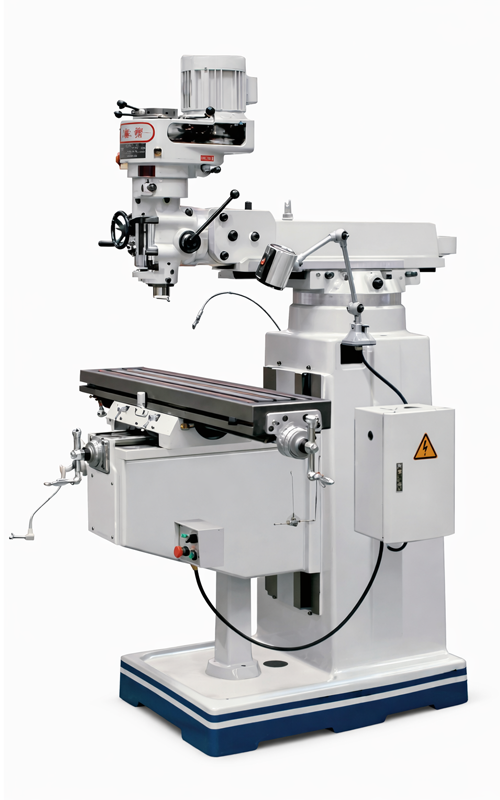

X6325A / X6325B

Specification	X6325A	X6325B
Table size	254 × 1270 mm	254 × 1270 mm
Long travel	850 mm	950 mm
Cross travel	400 mm	400 mm
Vertical travel	420 mm	420 mm
T-slot (No. & size)	3 × 16 mm	3 × 16 mm
Ram travel	470 mm	470 mm
Spindle nose to table surface	0–420 mm	0–420 mm
Spindle hole taper	R8 (standard)	Optional taper
Spindle travel	127 mm	127 mm
Spindle speed	16 speeds (50 Hz)	Optional variable speed
Auto quill feed	Three steps (0.04/0.0015/0.081 mm/rev)	Same
Spindle motor	2.25 kW / 3 HP	Same
Head swivel	90°	90°
Head tilting	45°	45°
Package size (1 set)	1516 × 1550 × 208 mm	1650 × 1790 × 217 mm
Gross weight	1380 kg	1420 kg

Specification

X6325A

X6325B

Table size

254 × 1270 mm

Long travel

850 mm

950 mm

Cross travel

400 mm

Vertical travel

420 mm

T-slot (No. & size)

3 × 16 mm

Ram travel

470 mm

Spindle nose to table surface

0–420 mm

Spindle hole taper

R8 (standard)

Optional taper

Spindle travel

127 mm

Spindle speed

16 speeds (50 Hz)

Optional variable speed

Auto quill feed

Three steps (0.04/0.0015/0.081 mm/rev)

Same

Spindle motor

2.25 kW / 3 HP

Same

Head swivel

90°

Head tilting

45°

Package size (1 set)

1516 × 1550 × 208 mm

1650 × 1790 × 217 mm

Gross weight

1380 kg

1420 kg

Danjon Marketing

In addition to our prowess in time management solutions, Danjon Marketing has expanded its footprint by venturing into the distribution of industrial machines. Our portfolio includes a spectrum of high-quality equipment, such as lathes, milling machines, and more. This strategic diversification underscores our commitment to providing comprehensive solutions that empower businesses across various sectors.

Products specifications shown here are subject to change without prior notice
