Lathe Machines

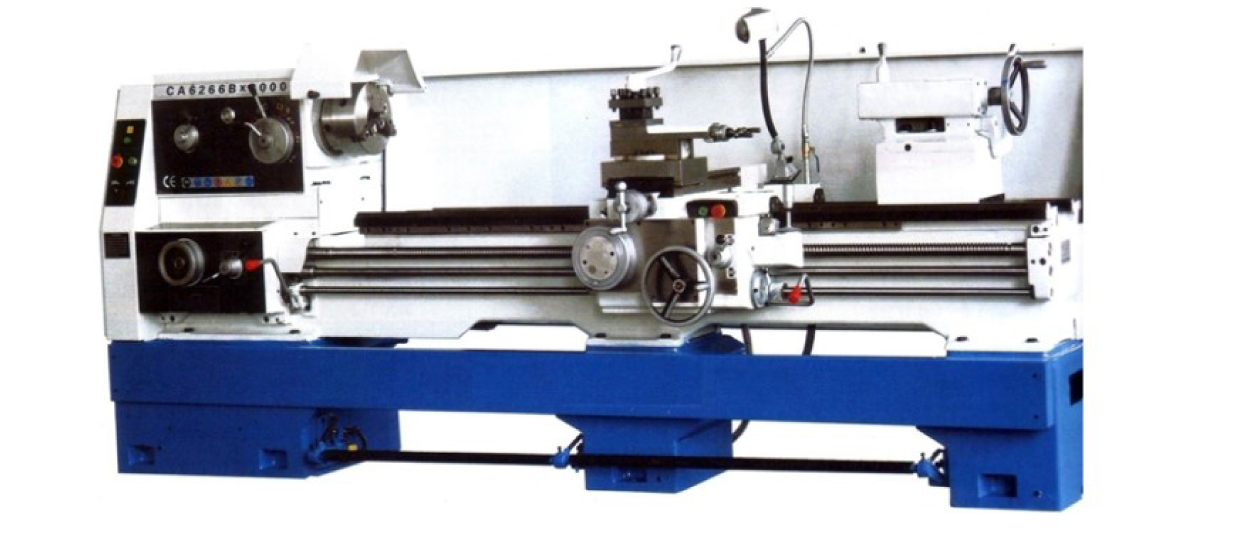

CA-6266C

Distance Between Centers: 1000/1500mm | Swing Over Bed: 660mm |Spindle Bore/Speed: 105mm/10-1400rpm | Motor: 7.5KW

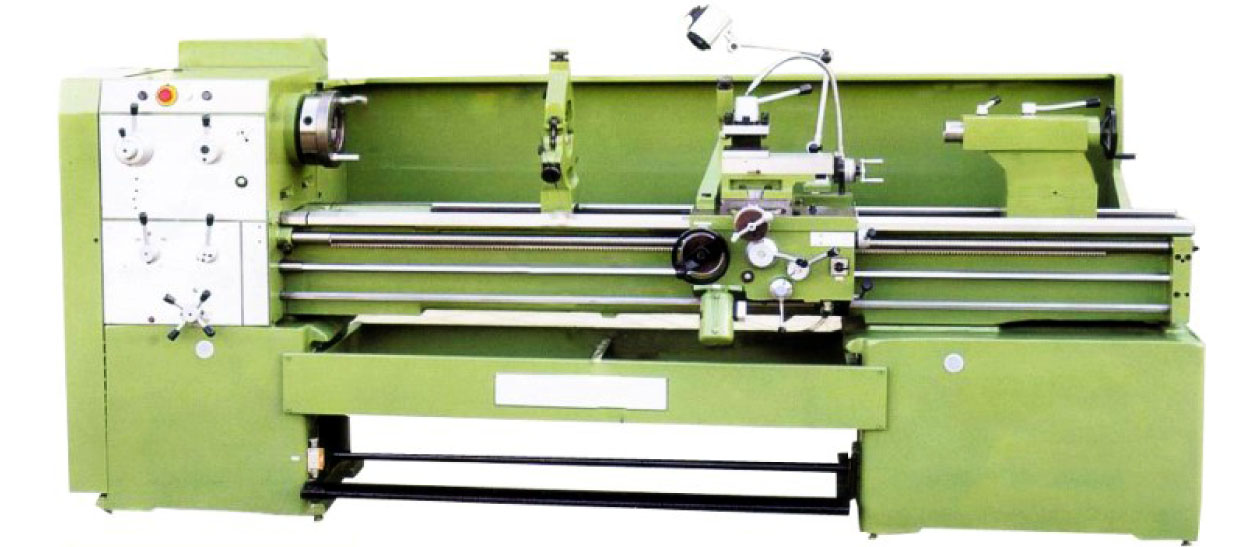

CD-6250C/6260C (DC-Series)

Distance Between Centers: 1500/2000mm | Swing Over Bed: 500/600mm |Spindle Bore/Speed: 80mm/24-1600 rpm | Motor: 7.5KW

Out of Stock

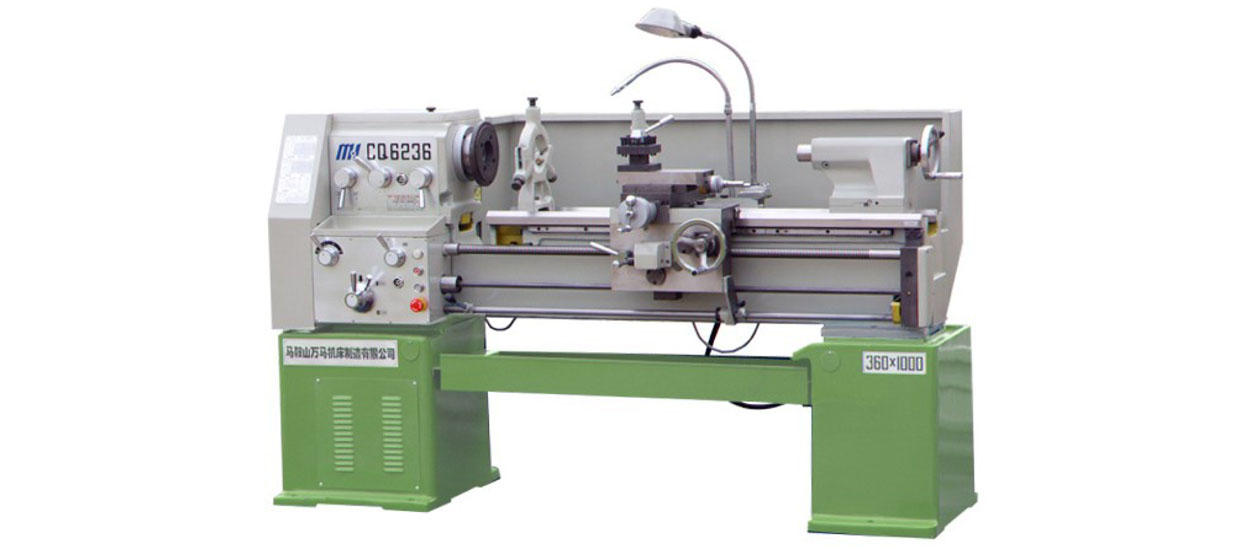

CQ-6236

Distance Between Centers: 1000mm | Swing Over Bed: 360mm |Spindle Bore/Speed: 52mm/65-1800 rpm | Motor: 1.4KW

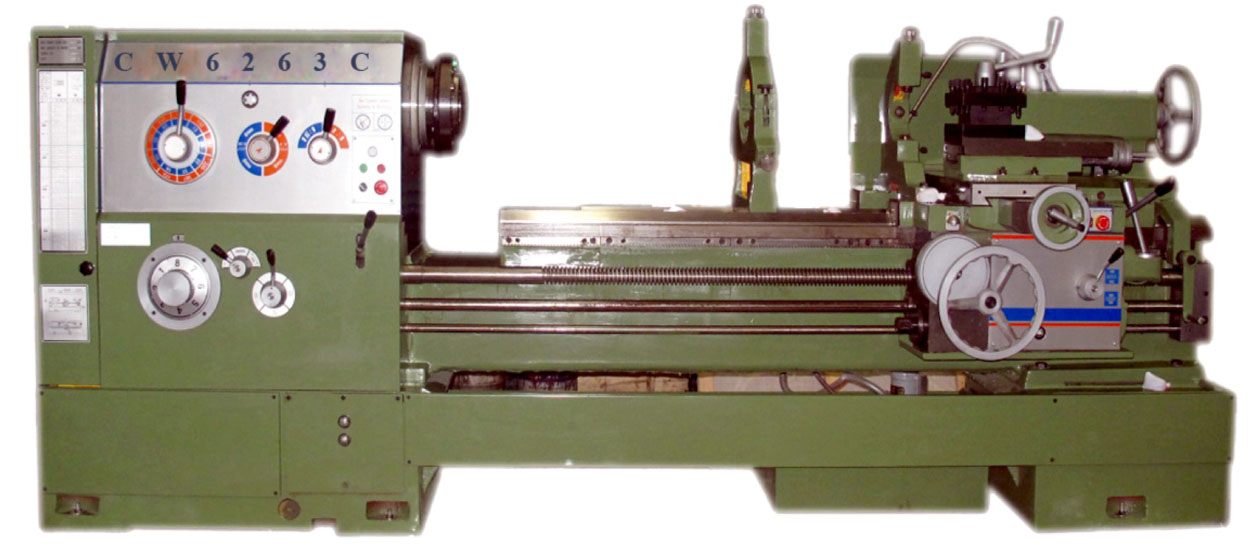

CW-6263C

Distance Between Centers: 4500mm | Swing Over Bed: 630mm |Spindle Bore/Speed: 105/130 mm/10-800 rpm | Motor: 11KW

CZ-1224

Distance Between Centers: 530mm | Swing Over Bed: 305mm |Spindle Bore/Speed: 36mm/50-1200 rpm | Motor: 1.1KW

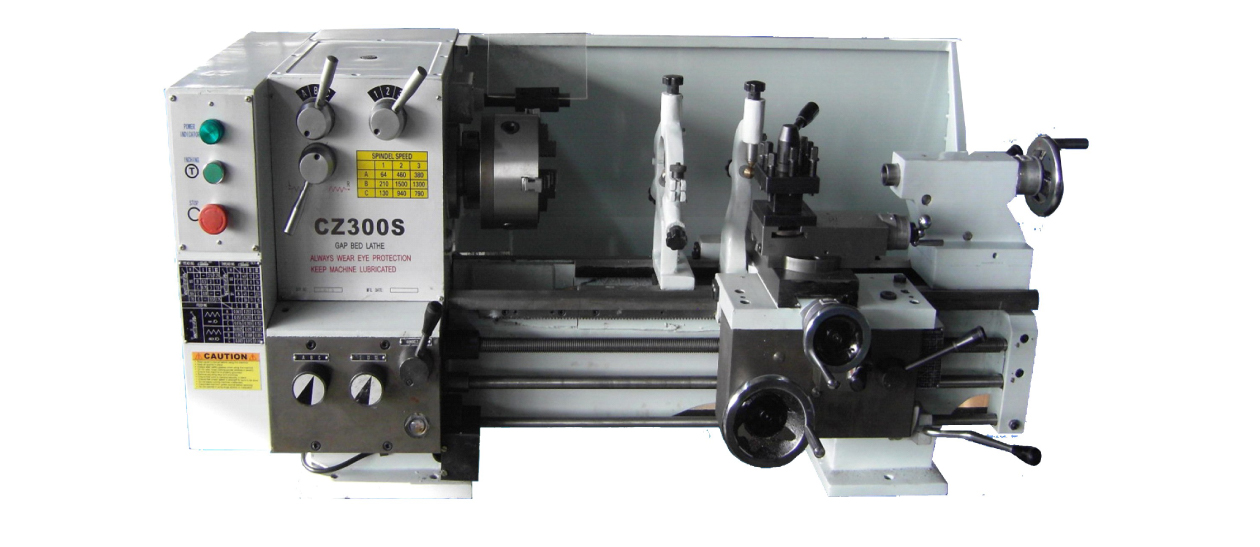

CZ-300S

Distance Between Centers: 530mm | Swing Over Bed: 305mm |Spindle Bore/Speed: 36mm/64-1500 rpm | Motor: 1.1KW

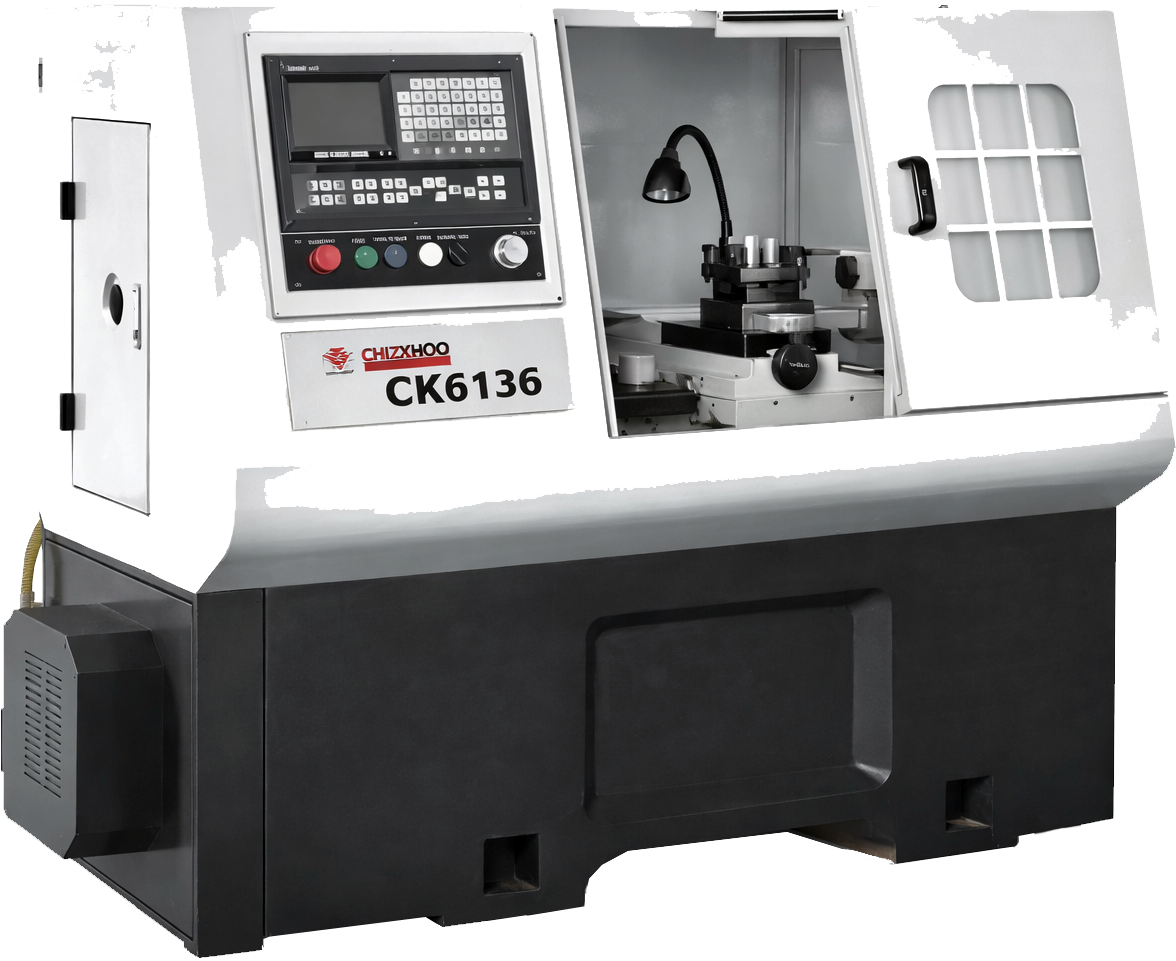

CK-6136

The CK-6136 CNC Lathe Machine is a high-precision lathe used for processing small and medium-sized shaft and plate workpieces. The machine features a spindle that adopts high-precision rolling bearings and a high-precision rotary plate that uses high-precision ball screw transmission. The machine is suitable for turning various threads, circle arcs, and other shapes

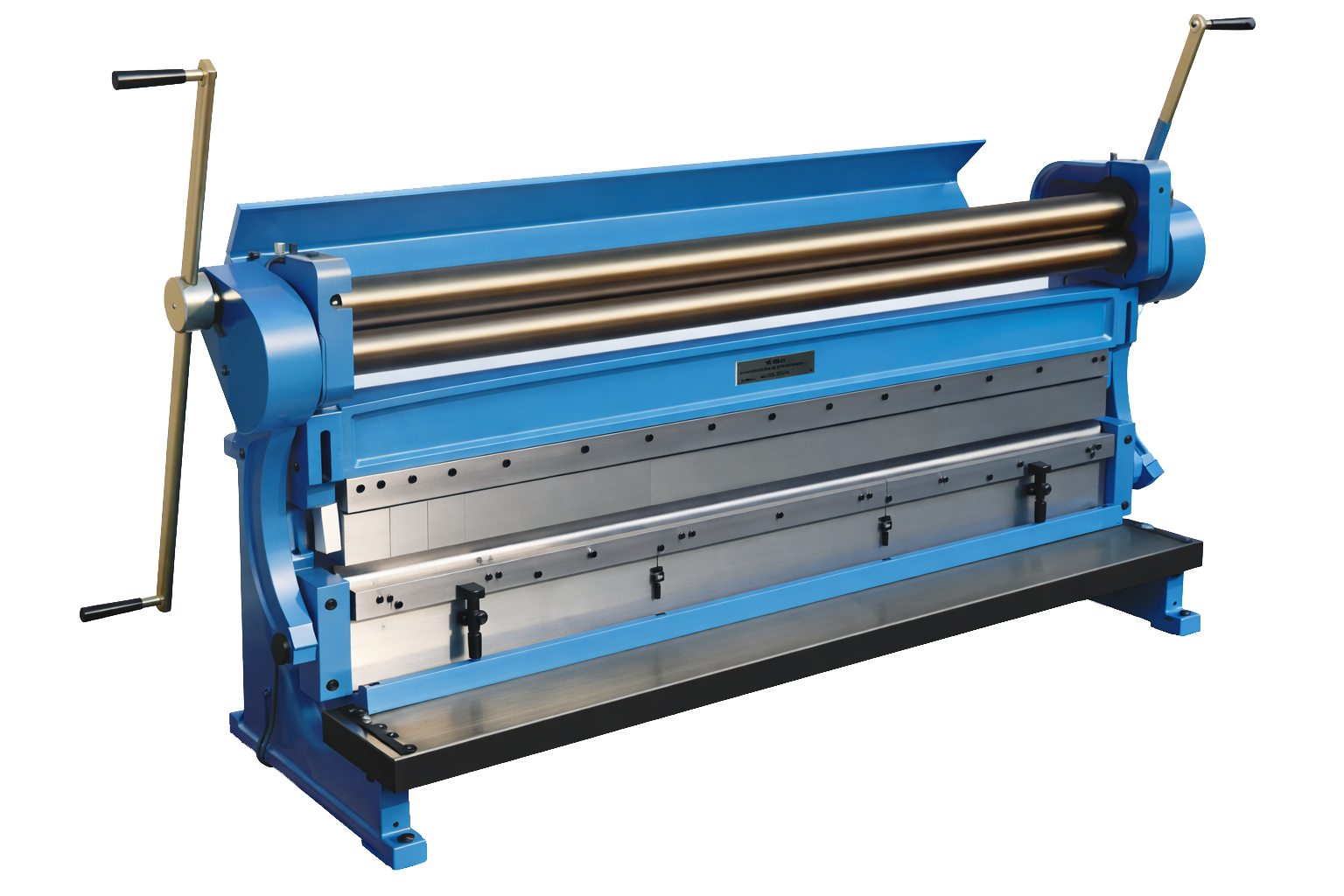

3 in 1 Combination

BENDING MACHINE (Shear,Brake and Roll)

3 in 1 Bending Machine Description
Bed width	1320mm
Shearing thickness	1mm
Bending thickness	1mm
Bending angle	90 degree
Rolling thickness	1mm
Minimum rolling diameter	51mm
Packing Dimension	169x57x78 cm
Net and Gross Weight	440 / 480 Kgs

Welding Machines

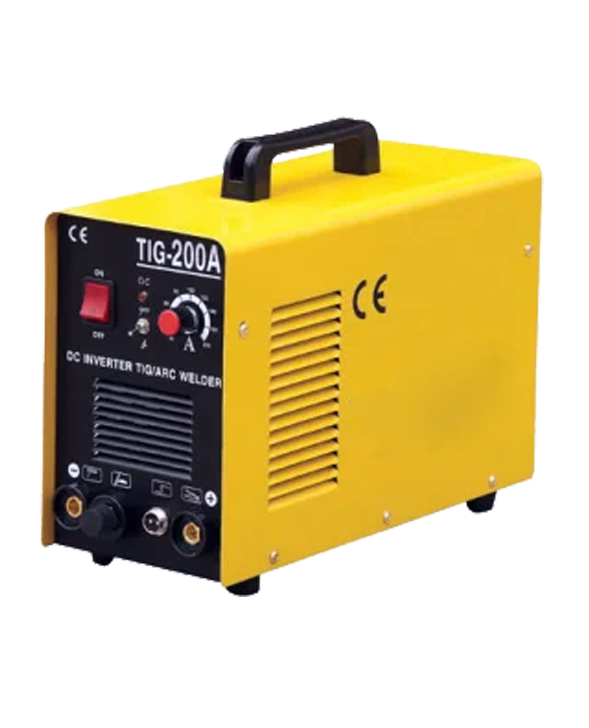

TIG200A

Rated Input Power: 220V 50/60 Hz
Rated Output Voltage: 28 / 18 V
Rated Input Capacity: 4.5 / 6.2 KVA
Protection Class: IP21
No Load Voltage: 68 / 43 V
Insulation Class: F
Duty Cycle: 60%
Current Range: 10-200 А
No Load Consumption: 40 W
Suitable Rod Size: 1.6-3.2mm
Dimension: 354x155x230mm/Weight: 8Kg

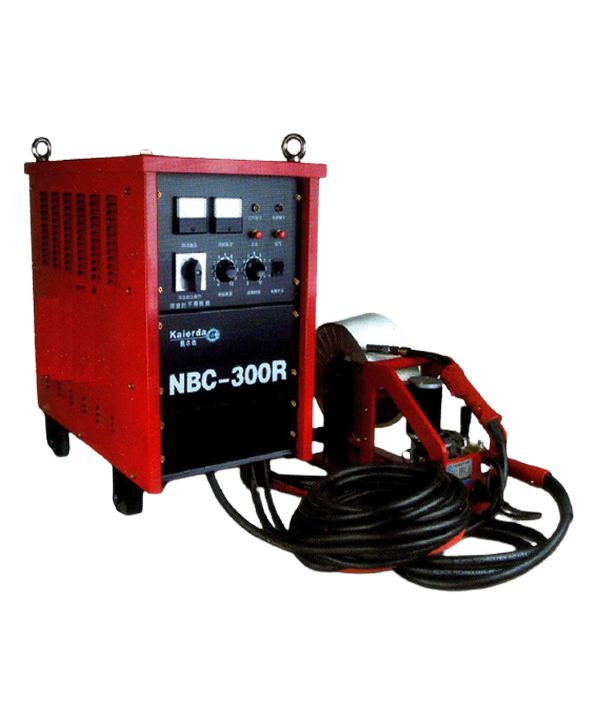

NBC300R

Rated Input Power: 3PH AC380 50/60Hz
Rated Input Voltage: 19-39V
Rated Input Current: 13.9A
Rated Input Capacity: 13.9 KVA
Protective Class: IP21S
Output Current: 60-300A
Insulation Class: F
Load Voltage: 17-29V
Spot Welding Times: 1-3s
Cooling Style: Fan Cooling
Dimension: 720x410x730mm/Weight: 90Kg

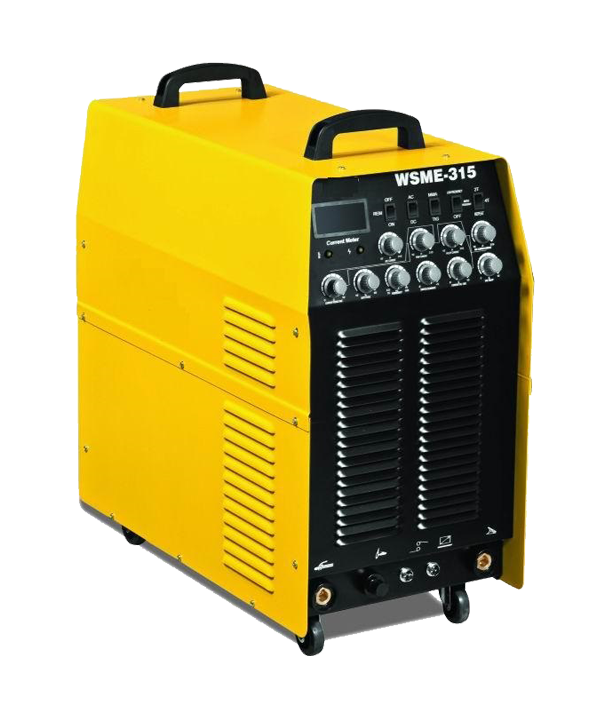

WSME315

Rated Input Power: 3PH AC380 50/60Hz
Rated Output Voltage: 22.6V
Rated Input Current: 20A
Output Current: 10-315 A
No Load Voltage: 60V
Insulation Class: F
Duty Cycle: 70%
Arc Strike Time: HF
Delay Time: 1-10s / Fall Time: 0-10s
Rise Time: 0-10s
Dimension:616x626x670mm/Weight: 40Kg

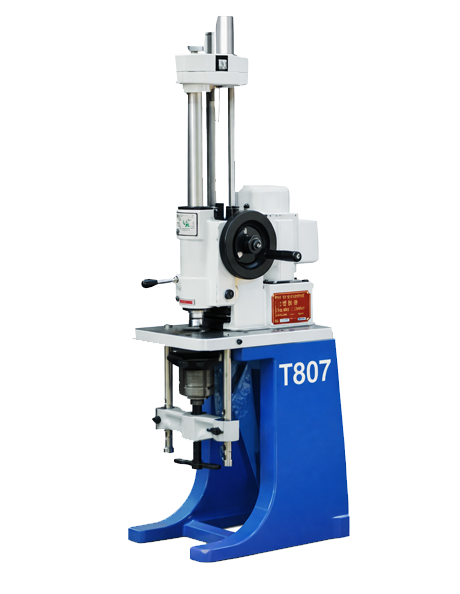

Boring Machine

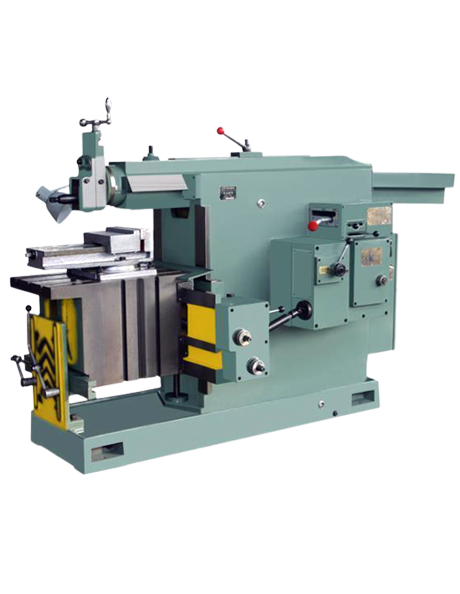

Shaper Machine

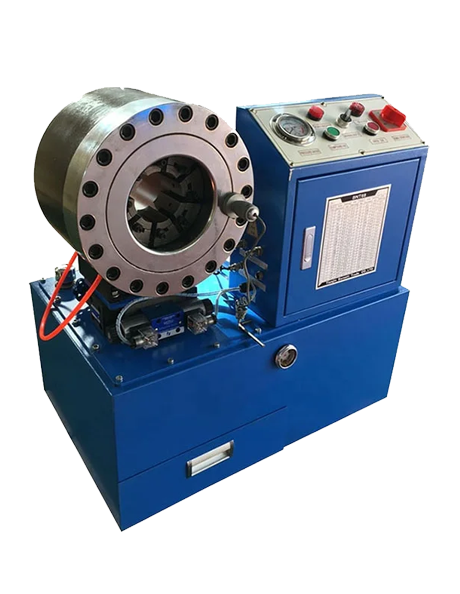

Pipe Locking Machine

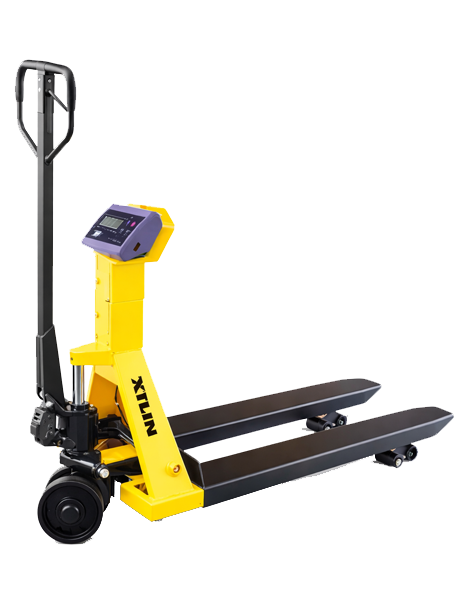

Pallet Truck Wheel

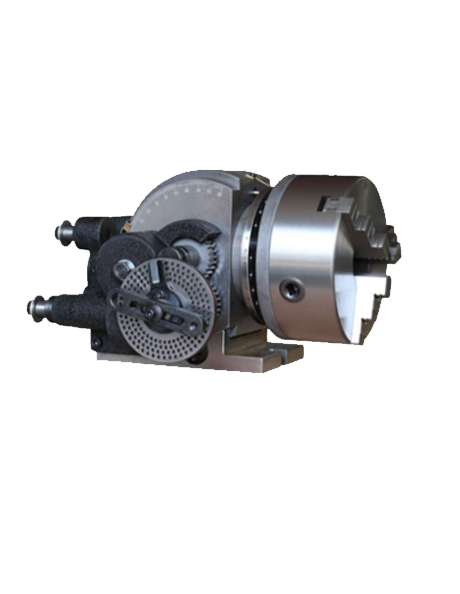

Dividing Head

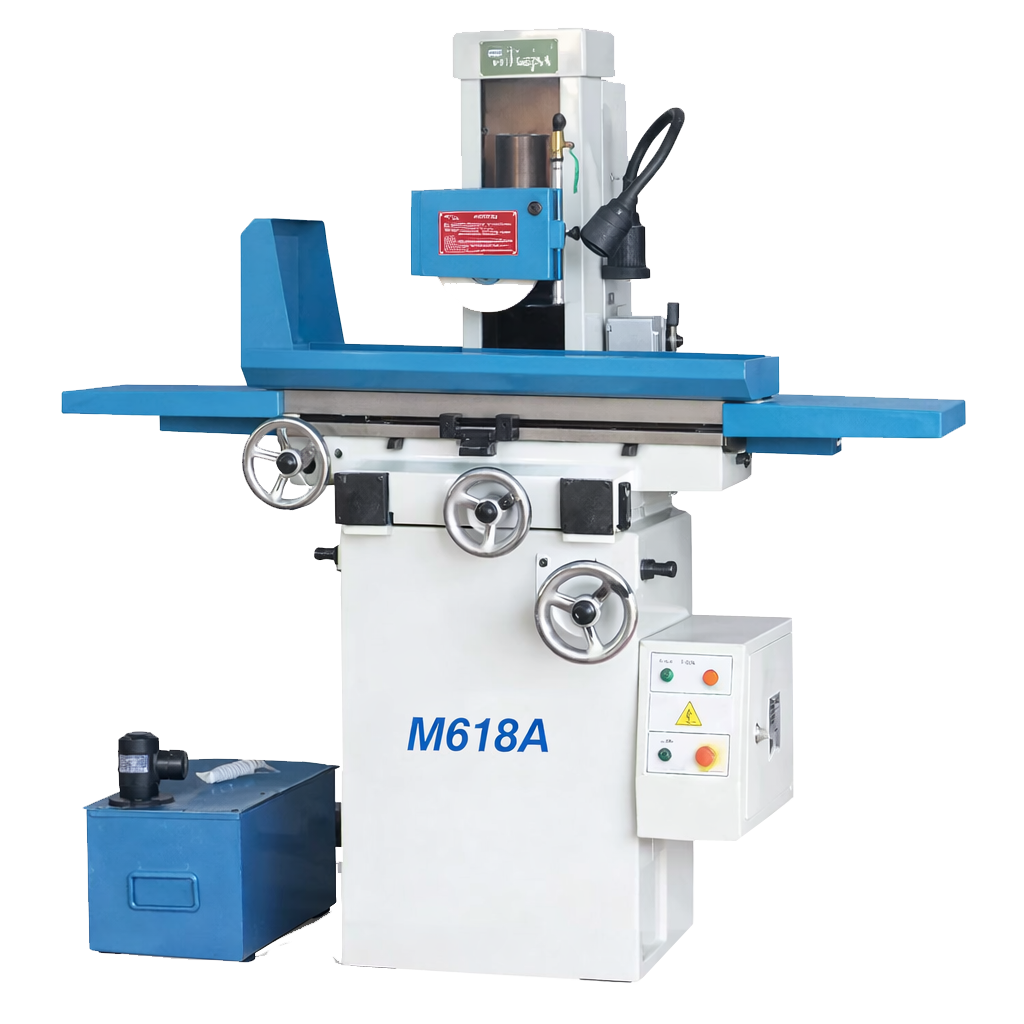

M618A Description
Max.workpiece to be Ground (LxWxH)	500 x 190 x 335 mm
Max. Grinding Length	500 mm
Max. Grinding Width	190 mm
Distance From Table Surface To Spindle Center	335 mm
Slide way	V-type rail with Steel-ball
V-type rail with Steel-ball	200 Kg
Table Size (L x W)	460 x 180 mm
Number of T-Slot	14 x 1 mm x n
Cross Feed On Handwheel	0.02/Graduation 2.5/revolution mm
Vertical Feed On Handwheel	0.01/Graduation 1.25/revolution mm
Wheel Size (dia. x width x bore)	200 x 16 x 31.75 mm
Spindle Speed 50Hz	2850 rpm
Spindle Speed Variable	0-6000 rpm
Spindle Motor	1.1 Kw
Coolant Pump	0.4 Kw
Machine Size (LxWxH)	1550 x 1060 x 1590 mm
Packing Size (L x W x H)	1060 x 1170 x 1870 mm
Gross/Net Weight	750/650 Kgs

M618A

Surface Grinding Machine

Milling Machines

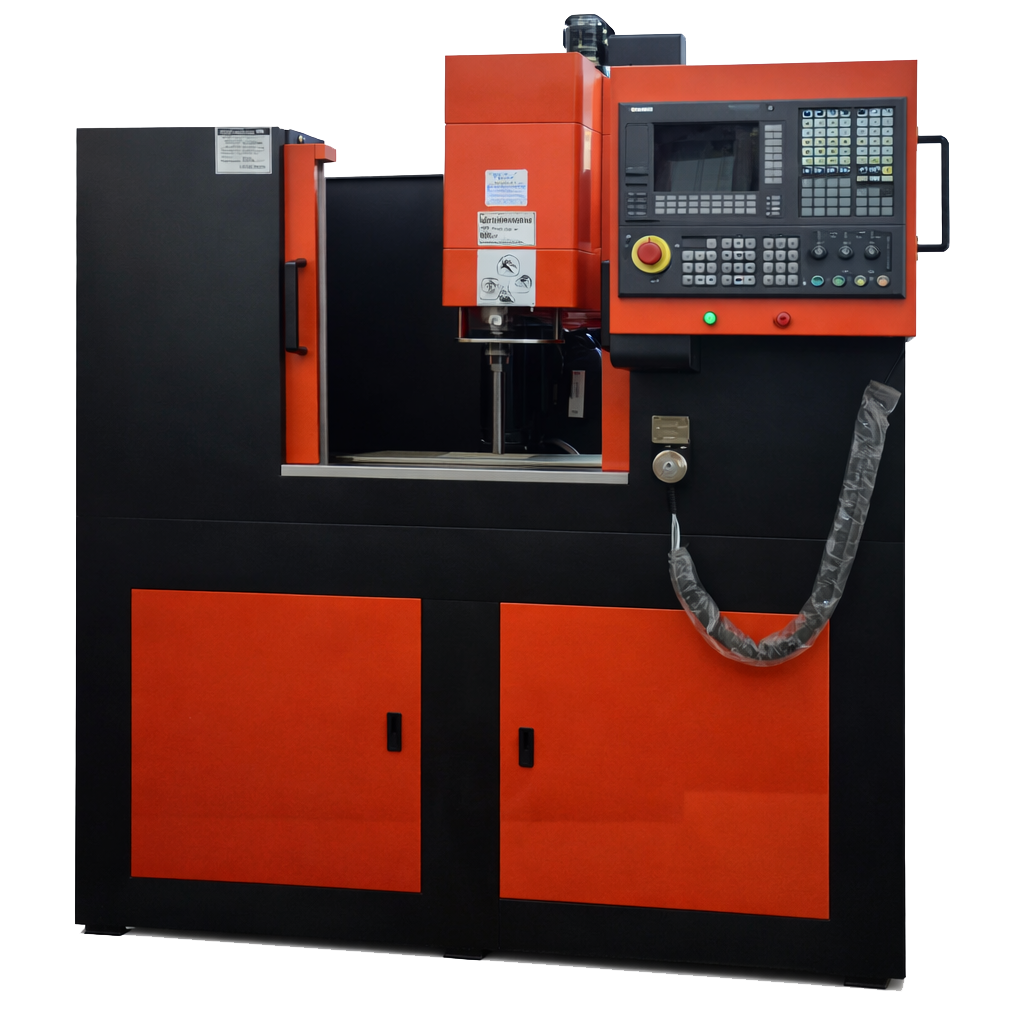

M-320

Introducing the M-320, a state-of-the-art CNC 3 Phase Milling Machine designed to revolutionize precision machining. Its Ethernet-based control system propels manufacturing processes into the future, ensuring seamless integration and precise execution. The M-320 features a high-performance brushless spindle motor, providing optimal power for a diverse range of milling applications.

Safety and efficiency converge in the M-320, enclosed within a robust structure with an automatic safety door lock. This feature not only enhances workplace security but also creates a controlled milling environment. With automatic diagnostic capabilities and power cut-off protection, the M-320 ensures operational reliability, minimizing downtime and maximizing productivity. The PC-based CNC software offers a user-friendly interface for intuitive control and programming, empowering operators to execute intricate tasks with precision. Coolant-ready for prolonged operations, the M-320 is a reliable choice for precision milling tasks, embodying cutting-edge technology and user-centric design.

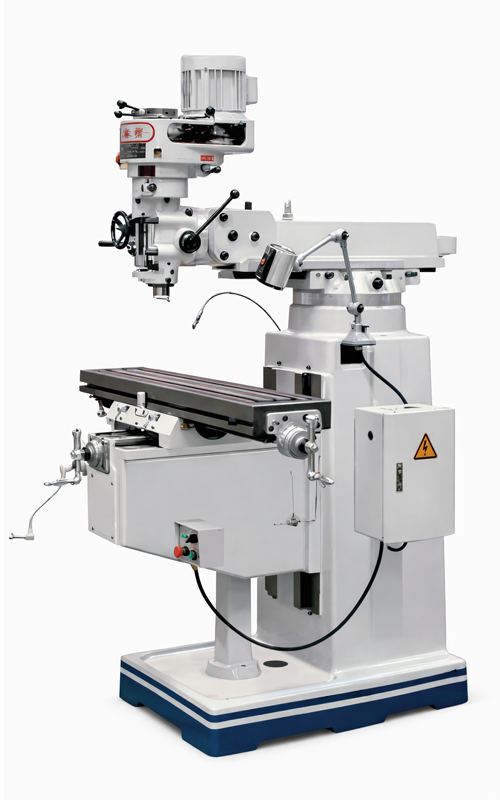

X-6323A

Milling Machine

X-6325A

Milling Machine

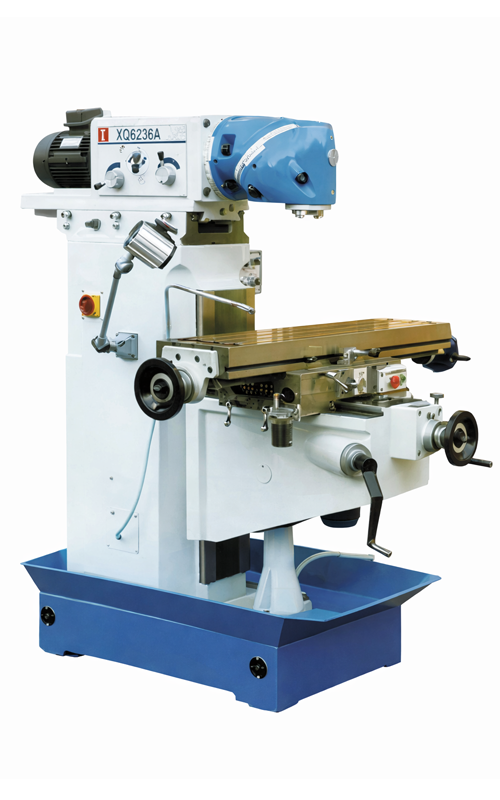

XQ-6226A

Milling Machine

ZAY7040G

Milling/Drilling Machine

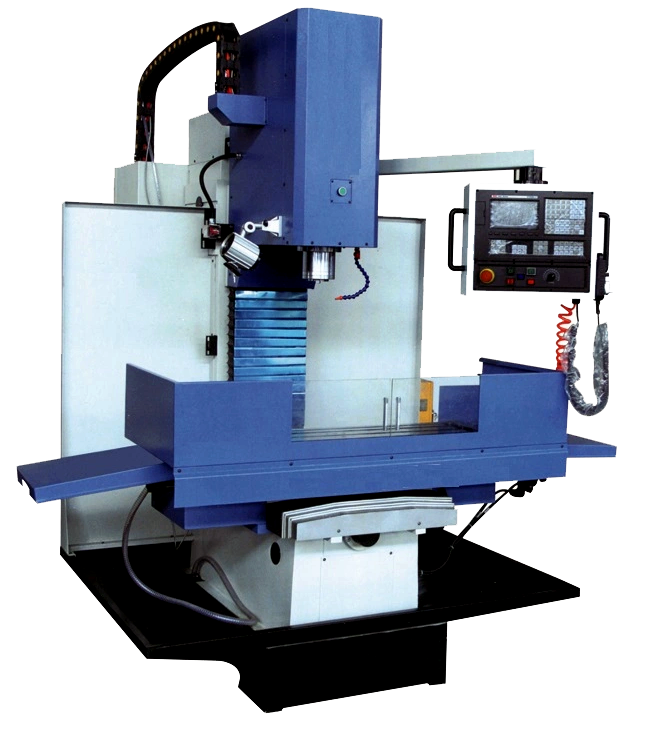

XK7136C

High-speed CNC spindle unit, equipped with frequency stepless speed regulation, is specifically designed for the high-precision machining of small parts, ensuring highly efficient and automated processing.
